Seals

Engine oil seals

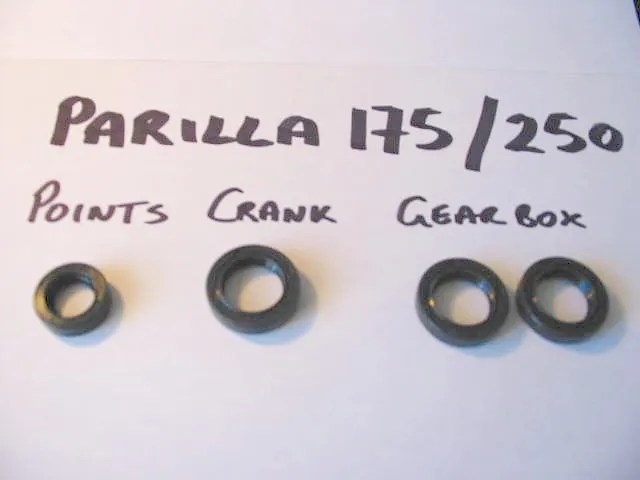

A set of four garter type seals for any hicam 175/200/250. Generator side crank. Timing side points & two gearbox shaft seals. These are double lipped seals which are superior to the cheaper single lip & far less likely to leak as the outer lip acts as a dust seal protecting the inner seal & allowing it a clean shaft to seal on to.

£18 + p&p for a set of 4

Fork seals

Seals for Wildcat & other 35mm stanchion forks.

£12 + p&p per pair

Oil feed seals

All around the Parilla high cam engine there are oil drains & feeds – rockers, crank end, sump plug, gearbox index plunger, & oil filter.

I located a supplier of rocker feed washers initially & have now been able to find sizes suitable for all these applications

A complete set of 12 sealing washers will replace all the fibre & alloy ones, can be reused, & should last a lot longer than the originals.

The majority of hi cam Moto Parilla engines have a T-shaped oil tube to feed oil from the the timing cover to the rockers. Unfortunately the oil feeds need to be disturbed to check the valves & the original alloy washers once undone seldom seal again. Modern practice is to use a bonded sealing washer. This is a conventional metal washer with a small “O” ring bonded to its inner diameter.

£10 plus p+p for a 12 washer set
